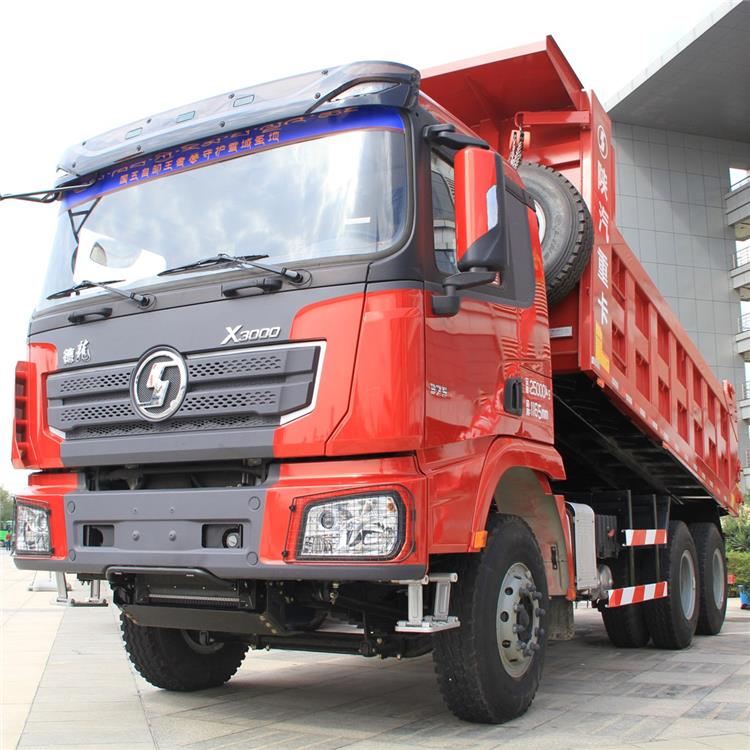

Shacman X3000 Dump Truck
1.Powerful diesel engine
2.Large payload capacity
3.Hydraulic tipping system
4.Reliable and durable construction
5.Easy to operate and maintain
- Shacman
- China
- 15-20 days
- 10000 Unit/Month
- Information
Descriptions
Shacman dump truck is a workhorse designed to tackle even the most demanding jobs. Built for durability and power, this 10-wheeler is a popular choice for construction sites, quarries, and any operation requiring heavy-duty hauling.F3000 boasts a robust chassis and a 6x4 drivetrain configuration, providing exceptional stability and load handling. This translates to confident maneuvering on uneven terrain and a surefooted ride when carrying heavy cargo.
Choose from a range of engine options, all offering impressive horsepower (from 351 to 450hp) to conquer even the steepest inclines and haul the heaviest loads with ease. Available in both 6x4 and 8x4 configurations, the F3000 provides superior traction and stability for any terrain.
Drive configurations: Choose from 6x4 and 8x4 drive configurations
Engineered for Power：F3000 X3000 M3000 H3000 L3000
Orange
White
Green
Red
6X4 10 Wheels Dump Truck
8X4 12 Wheels Dump Truck
Details
High-strength alloy steel
The frame structure is made of improved high-strength alloy steel with a 6000-ton compression strength. This material is integrally stamped, which increases its structural width and resistance to.
Impact resistance
The cab utilizes precision robotic welding to ensure better impact resistance and increasing safety. It has complied with the latest European crashworthiness standard of "ECE-R29".
Excellent electrical system
The X3000 electrical system has passed the rigorous testing with its enhanced electrical components. It has achieved a remarkable performance of over 12 million kilometers of cumulative testing.
Parameters
| Drive | 6x4 | 8x4 | ||
| GCW (t) | 50 | 70 | 90 | |
| Cab | Type | Medium-length flat roof | ||
| Suspension | Four-point hydraulic suspension | |||
| Seat | Hydraulic main seat | |||
| Air conditioner | Electric automatic constant temperature AC | |||
| Engine | Model | WP12/WP13/M10/M13/ISM11 | ||
| Emission standard | EURO II - EURO V | |||
| Rated power (hp) | 400/385/430/385 | 430/440/430/460 | ||
| Transmission | Model | FAST MT (10/12/16) | ||
| Main configuration | Front axle | 9.5t | ||
| Axle | Rear axle | 16t | ||
| Ratio | 5.92 | 5.262 | ||
| Dimension (mm) | 850X300(8+7) | 850X320(8+7+8) | ||
| Wheel base (mm) | 3775+1400 | 1800+3575+1400 | ||
| Chassis | Wheel overhang (mm) | 850 | 1000 | |
| Fuel tank | 300L aluminum alloy | 400L aluminum alloy | 300L aluminum alloy | |
| Tire | 12.00R20 | |||
| Suspension | Front and rear multi-leaf springs | |||
| Tipper container | 5600x2300x1500 | 7400x2300x1500 | 7400x2300x1200 | |
| Applicable road condition | Muddy and potholed roads with steep grades | |||
| Applicable condition | Economic/Max speed (km/h) | 40-55/75 | 45-60/85 | 40-60/80 |
| Basic equipment | Electric window lifter, metal bumper, daytime running lights, hinged boarding pedal, radiator grille | Electric window lifter, daytime running lights, metal bumper, hinged boarding pedal, water tank protection grille | ||
