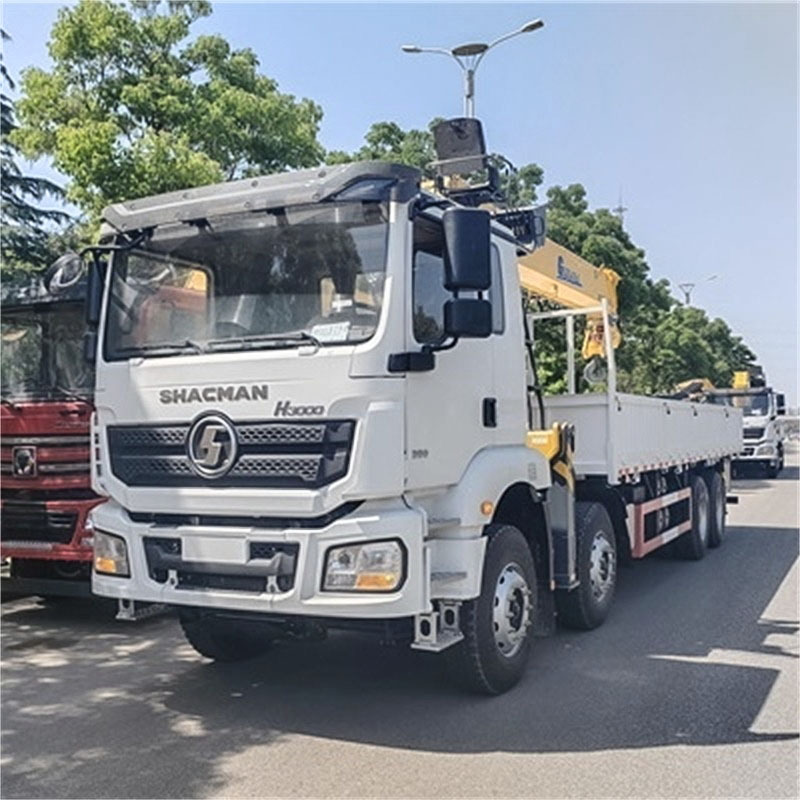

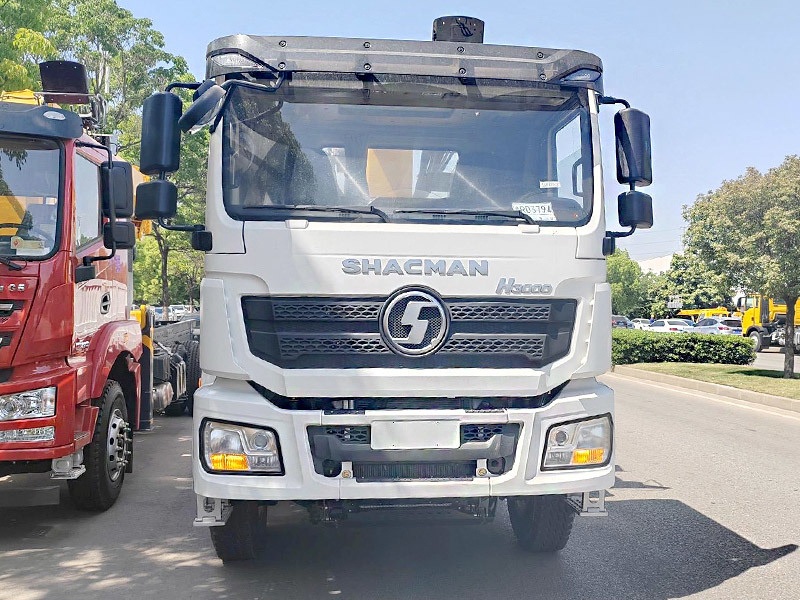

Shacman H3000 Truck Crane
High reliability
Heavy loading capacity
Lifting and loading in one
Up to 40 ton loading capacity
Weichai or Cummins Engine
Up to Euro V Emission standard
- Shacman
- China
- 15-20 days
- 10000 Unit/Month
- Information
Shacman Truck Crane
Overview

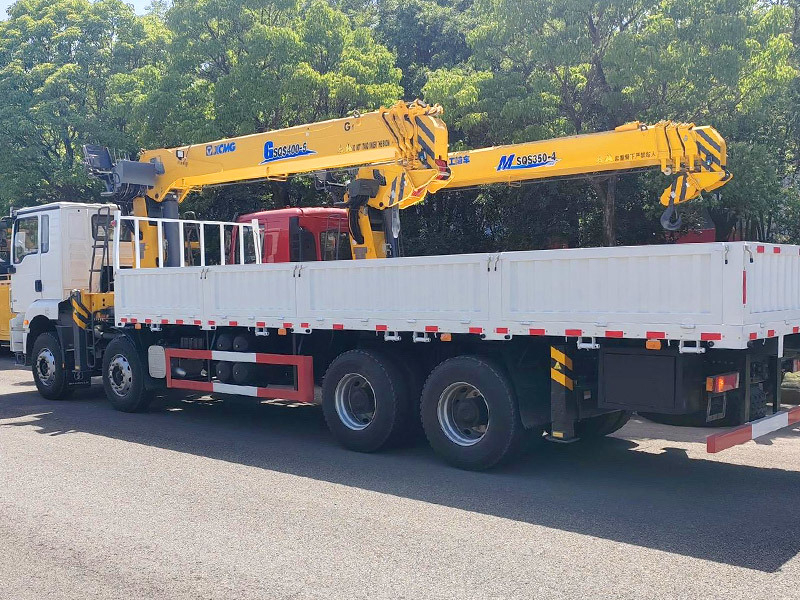

Shacman truck Crane (also called Shacman telescopic boom truck, Shacman cargo truck with crane XCMG, Shacman truck mounted crane XCMG, Shacman knuckle boom crane truck, XCMG crane mounted on truck chassis) is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1 Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T
Shacman truck Crane can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Parameters
| Model | SX5315JSQMT456 | |
| Drive type | 8x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 2100+4575+1400 |
| Performance | Maximum speed/(km/h) | 60～75/115 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Power/(kw/HP) | 280w / 380Hp | |
| Maximum torque / (N.M)/rpm | 1600 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro/ II | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5+8) | |
| Suspension | Front | Front /rear multi-layer plate spring 4 main plates + 4 U-shaped bolts |
| Rear | Front /rear multi-layer plate spring 4 main plates + 4 U-shaped bolts | |
| Axles | Brand | HANDE |
| Front axle | MAN 9.5T | |
| Rear axle | 2*16 T Double-stage, speed ratio-5.262 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN H3000 medium-length flat roof |
| Equipment | Hydraulic main seat, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free battery, SHACMAN Logo, full English logo. | |
| Crane lifting type | Hydraulic | |
| Crane capacity | 5-16ton | |
| container size | 6800*2350*600mm(customized ) | |
| container material | High strength carbon steel | |
| Container thickness | 6mm Side,8mm bottom | |
