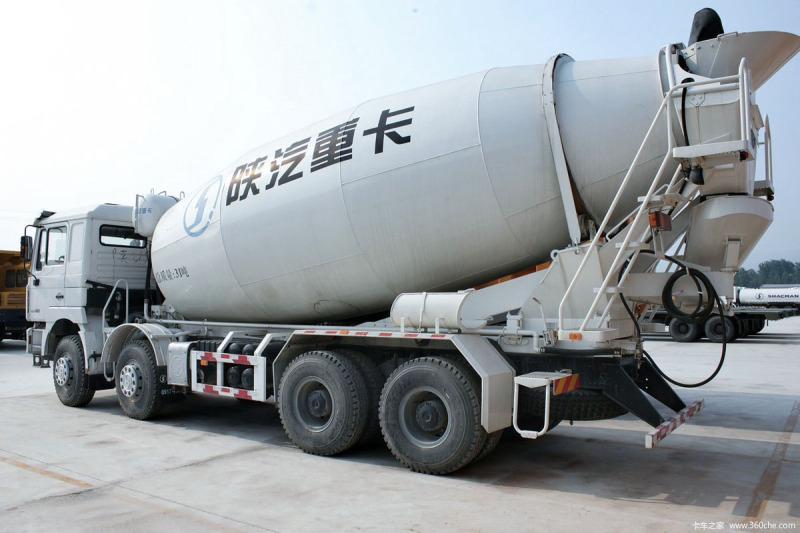

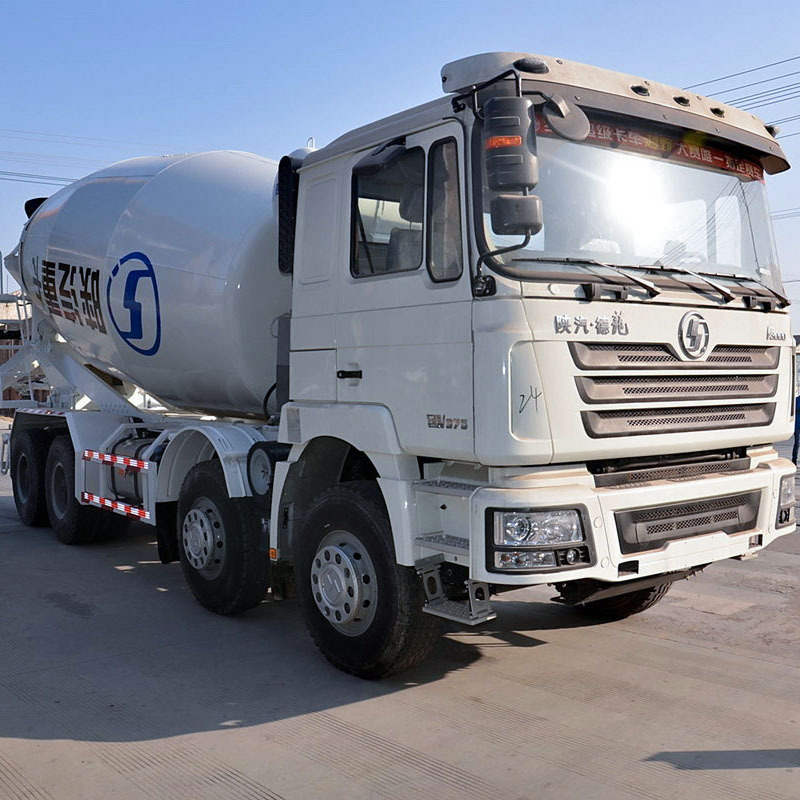

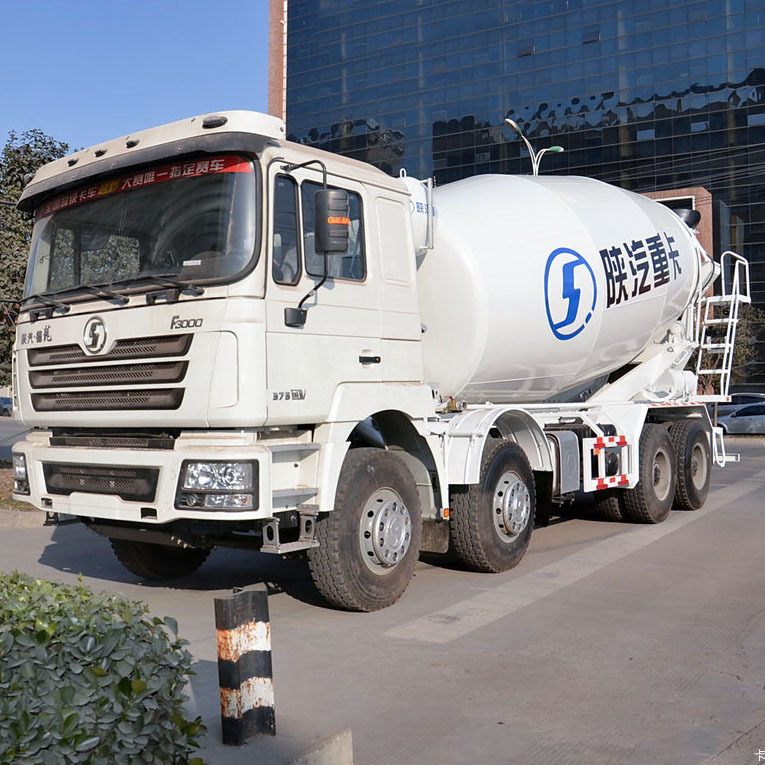

Shacman F3000 8x4 Concrete Mixer Truck
Euro II to Euro V emission standard
Up to 50 tons carry capacity
Up to 420 PS
Reliable and stable platform
Great in different working conditions
- Shacman
- China
- 15-20 days
- 10000 Unit/Month
- Information
Shacman Concrete Mixer Truck
Overview
Shacman Concrete Mixer Truck is a special truck used to transport concrete for mixing construction. Because of its shape, it is often called snail truck. These trucks are equipped with round and simple mixing drums to carry the mixed concrete. During transportation, the mixing drum will always rotate to ensure that the transported concrete will not solidify.
After transporting the concrete, the interior of the mixing drum is usually washed with water to prevent the hardened concrete from occupying space and reduce the volume of the mixing box.
Shacman Cement Mixer Truck has a lower body, which makes the whole vehicle have higher stability when driving. The compact open hydraulic circuit system improves the working efficiency. The temperature control switch can ensure that the temperature of the hydraulic system is not higher than 65 ℃. Wear resistant lining plates are added to the feed hopper and swing discharge chute to improve the service life. The mixing drum shell and blade made of special materials have higher wear resistance.
Parameters
| Transport type | Heavy haul transportation | ||
| Logistics type | Concrete | Bulk cement | |
| Distance(km) | ≤50 | ≤300 | |
| Road type | Paved roads | ||
| Drive | 6X4 | ||
| Max weight(t) | ≤50 | ≤70 | |
| Load/Volume | ≤9-10 | ≤25 | |
| Max speed(km/h) | 40~55/80 | 40~55/80 | |
| Loaded speed(km/h) | 30~65 | 30~65 | |
| Vehicle model | SX5255GJBJT384 | SX5255GSNJM434 | |
| Engine | WP10.340E32 | WP10.290E32 | |
| Emission standard | Euro II | Euro II | |
| Displacement | 9.7L | 9.7L | |
| Rated Output | 250kw | 213kw | |
| Max. torque | 1350N.m | 1160N.m | |
| Transmission | 9JS135 | 9JS119+QH50 | |
| Clutch | 430 | ||
| Frame | 850X300(8+7) | 850X300(8+5) | |
| Front axle | MAN 7.5T | ||
| Rear axle | 16T STR double reduction5.262 | ||
| Tire | 12.00R20 | 12.00R20 | |
| Front Suspension | Multi leaf springs | Multi leaf springs | |
| Rear Suspension | Multi leaf springs | Multi leaf springs | |
| Fuel | Diesel | ||
| Capacity of the fuel tank | 380L | 400L | |
| Dimensions(LxWxH) | 8475X2495X3774 | 9975X2495X3774 | |
| Approach/Departure angle( °) | 28/18 | 20/12 | |
| Max.grade ability(%) | 34 | 27 | |
| Cab | Type | ♦ Ring curtain♦ Real window♦ Manual sunroof♦ Hydraulic shock absorber seat♦ Fixed passenger seat♦ Four point air suspension♦ Seat sleeping bed♦ Manual flip | |
| Equipment | |||
| Optional | ♦ Chinese made clutch♦ Central locking | ||
