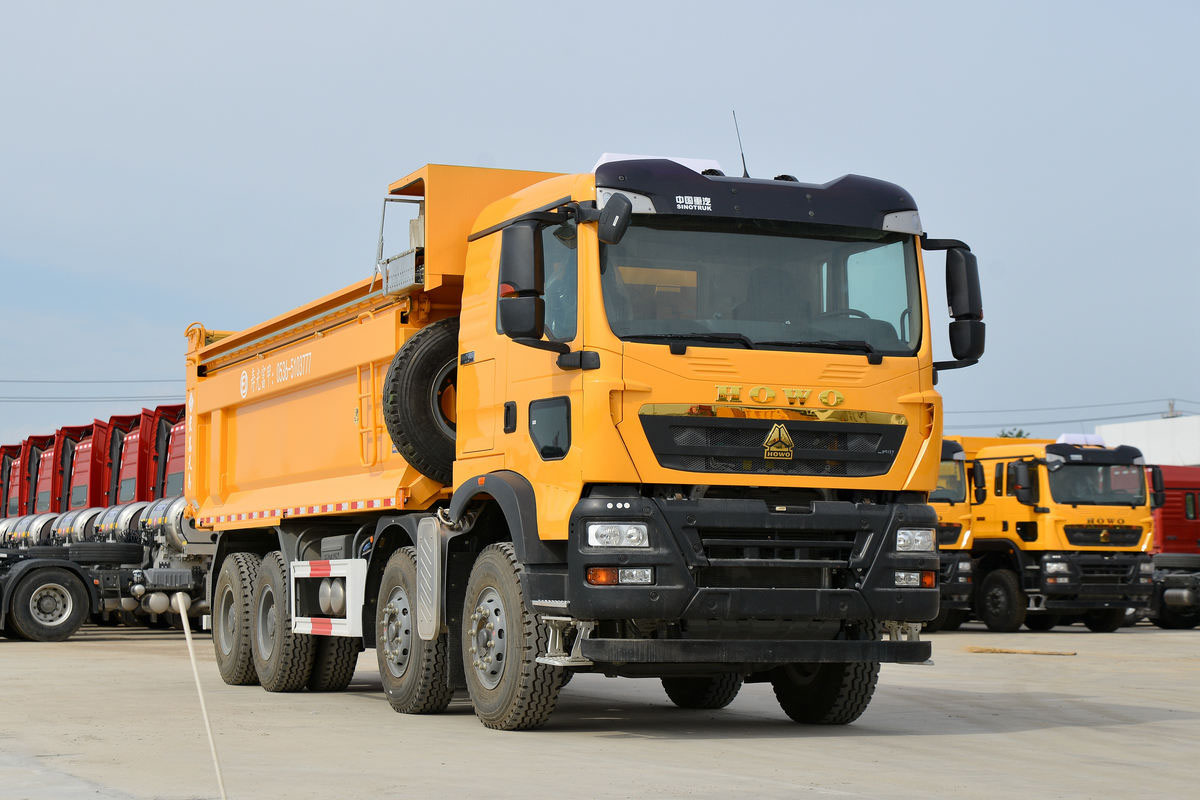

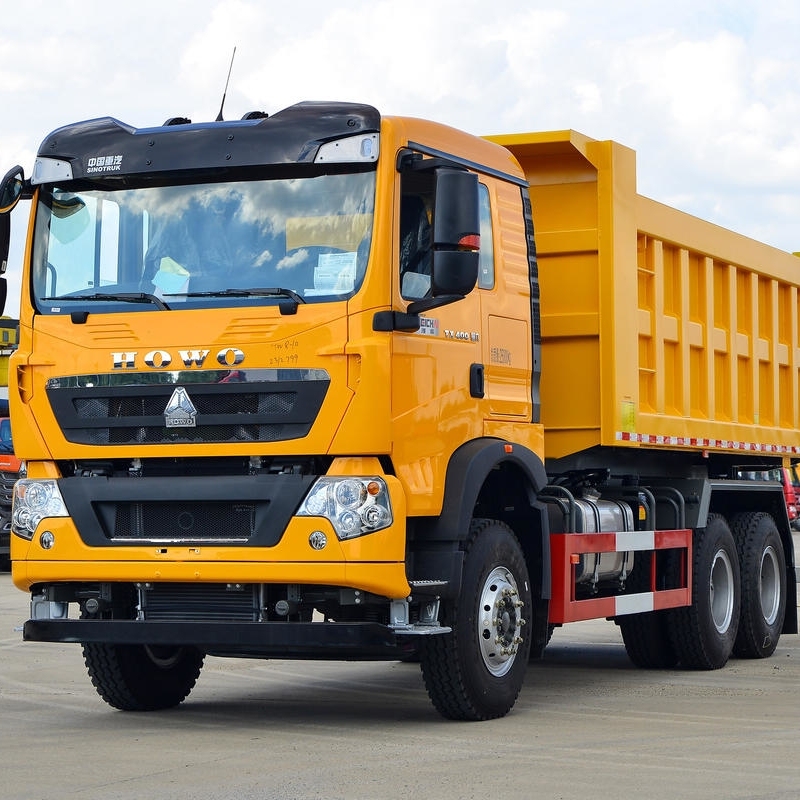

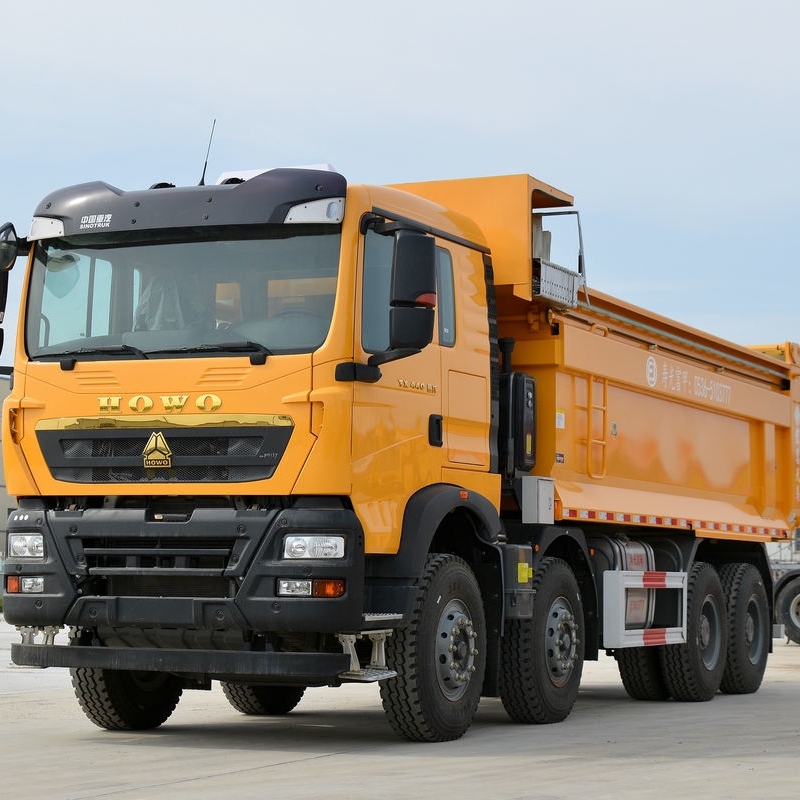

Howo TX Dump Truck
1.Powerful diesel engine
2.Large payload capacity
3.Hydraulic tipping system
4.Reliable and durable construction
5.Easy to operate and maintain
- Howo
- China
- 15-20 days
- 100 units per month
- Information
Howo TX Dump Truck
Overview
Howo dump truck are the ideal choice of clients with low budget but have requirements of the practicality of the truck.
The howo dump trucks can be used for transporting stones,sands,minerals etc,which have the same functions of new dump trucks.
Our Howo dump trucks is much cheaper than new one.Production date of the tractor truck ranges from year of 2014-2016,emission standard from EURO II and EURO III,horse power ranges from 336-430hp,running mileage from 50000-70000 kilo meters.It can use about 8 years according to the road and maintenance condition.
White

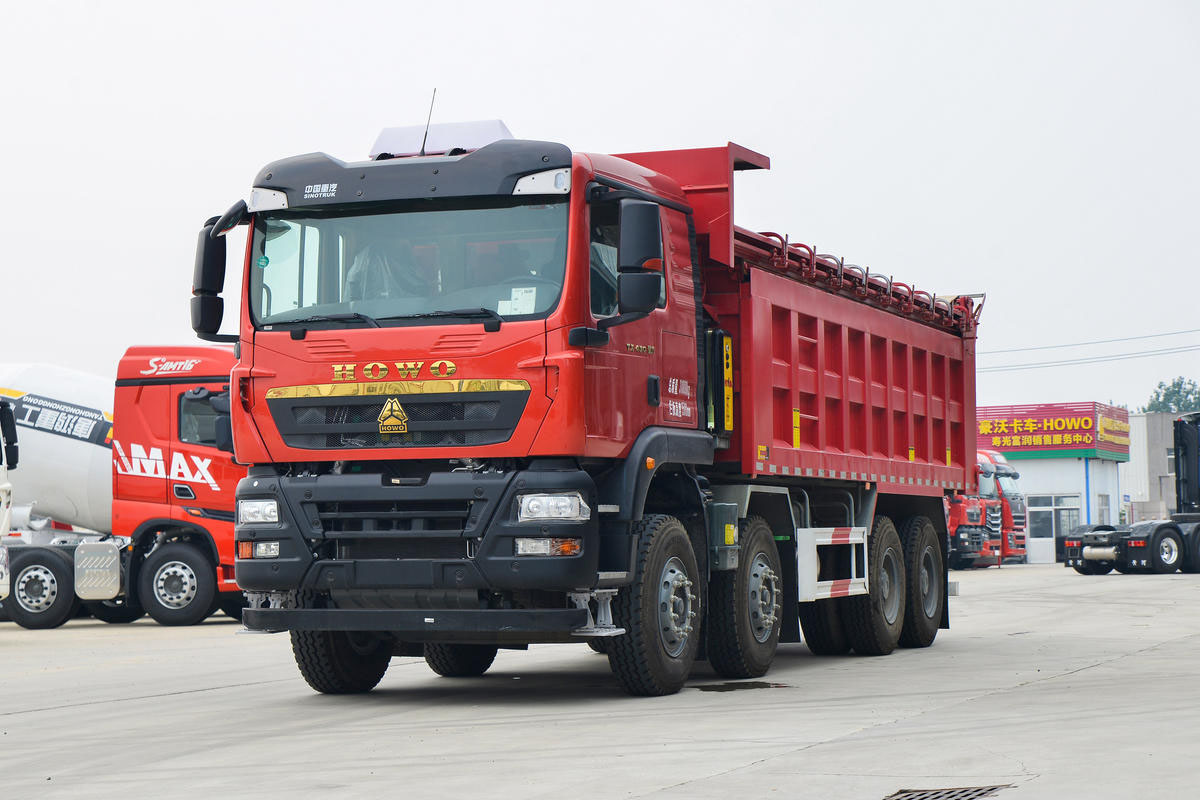

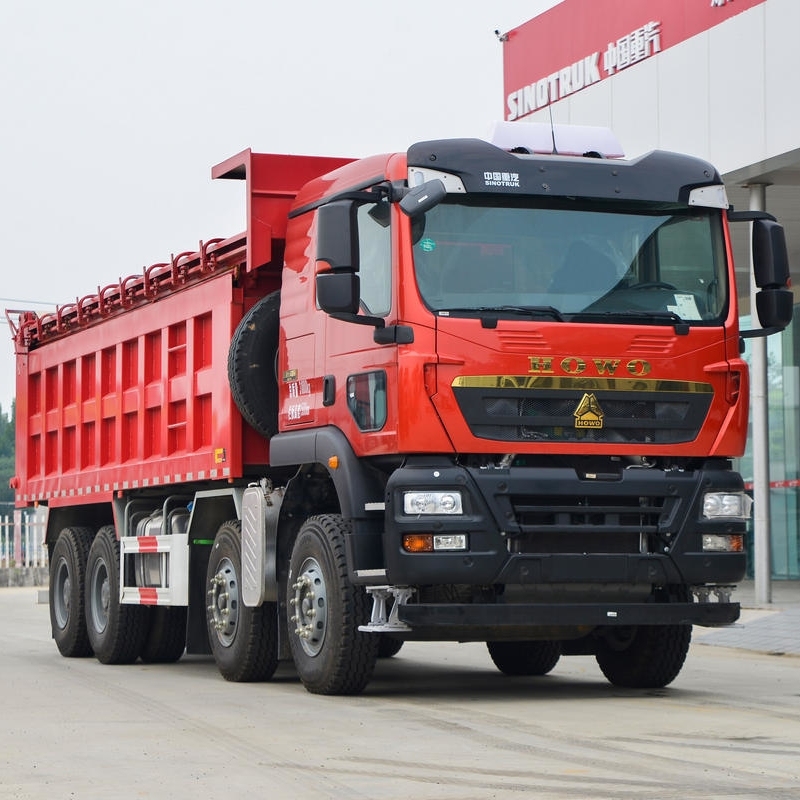

Red

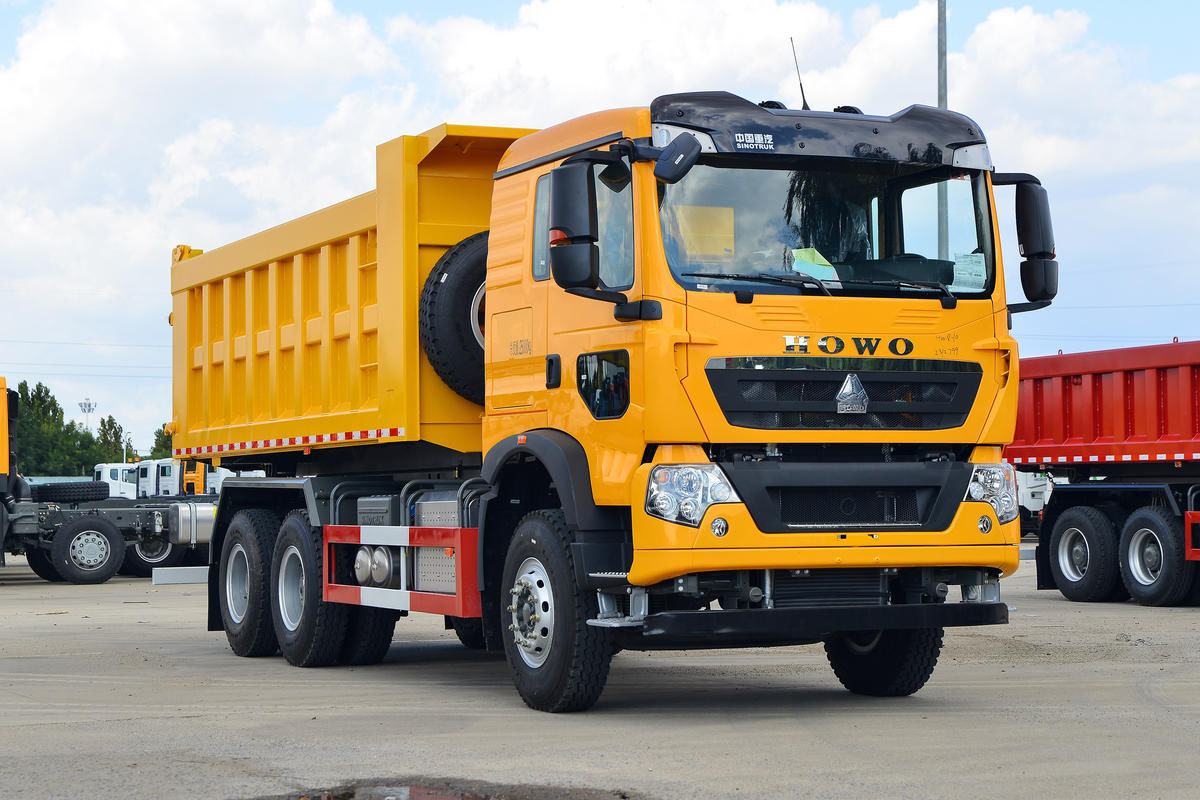

Yellow
Black
Drive configurations: Choose from 4x2, 6x4, and 8x4 drive configurations
Engineered for Power：336 371 375 380 400 420 430 hp
Parameters
| Brand: HOWO | Drive type: 6×4,8×4 | Substrain: TX |
| Total mass (t):25 | Weight (kg):9700 | Wheelbase (mm):3625 |
| Vehicle length (mm):7275 | Vehicle width (mm):2522 | Vehicle height (mm):3250, 3825 |
| Truck model:ZZ3257N364GB1 | ||
| Engine: WD615.47,WP10.380E22,WP12.400E201 ,WP12.430E201,MC11.43-30,MC11-54-30 | Engine power (Ps): 340,371,380,400,430,460,540 | Emission level: Europe Ⅱ,Ⅲ,Ⅳ,Ⅴ |
| Cab: TX-M,TX-F | Transmission: HW19710,HW19712+HW70PTO,HW25712,ZF16S2231-TO | |
| Frame: Double layer frame (8+8/300) | Front Axle: HF7,HF9,VGD71,VGD95 Front Axle (Drum) | Drive Axle: HC16,ST16,AC16,MCY13BGS,MCP16ZG ,MCX16ZG Dual Rear Axle(Drum) |
| Drive Axle Ratio: 3.7,3.93,4.11,4.42,4.77,5.26,5.451,5.73 | Steering gear:Bosch steering gear | Brake control system: with ABS |
| Bumper: High bumper (full metal) | Fuel tank/gas cylinder:400L,500L,600L,700L,800L,750L +360L double tanks | |
| Tires: 12.00R20,13R22.5,315/80R22.5(mixed tread/20PR) | ||
