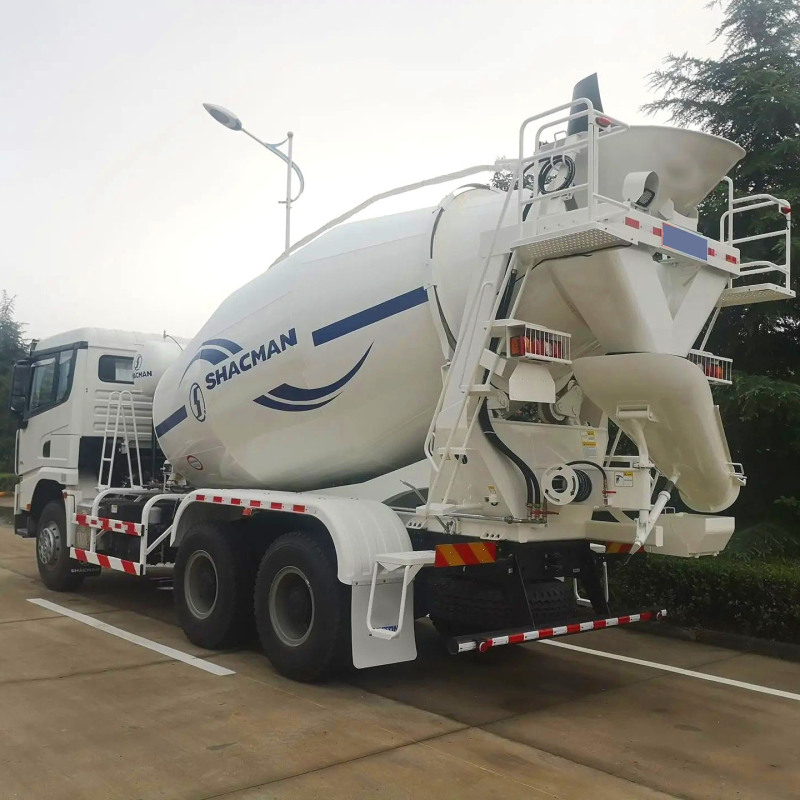

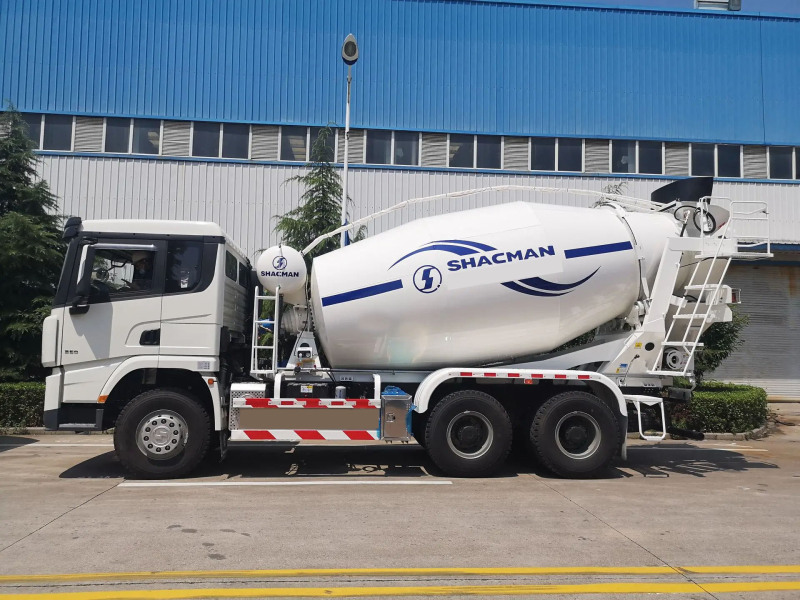

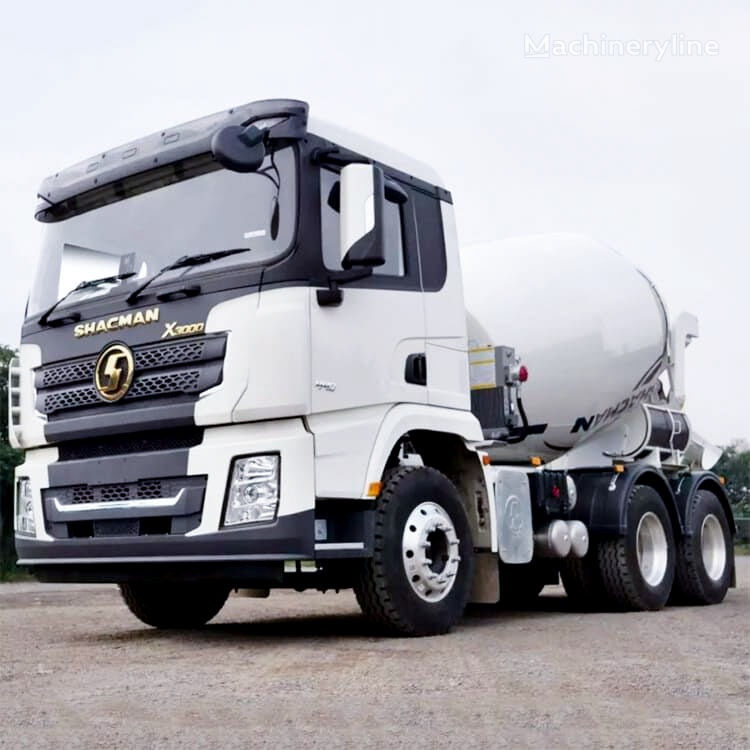

Shacman X3000 6x4 Concrete Mixer Truck
Euro II to Euro V emission standard
Up to 35 tons carry capacity
Up to 420 PS
Reliable and stable platform
Great in different working conditions
- Shacman
- China
- 15-20 days
- 10000 Unit/Month
- Information
Shacman Concrete Mixer Truck
Overview
Shacman Concrete Mixer Truck is a special truck used to transport concrete for mixing construction. Because of its shape, it is often called snail truck. These trucks are equipped with round and simple mixing drums to carry the mixed concrete. During transportation, the mixing drum will always rotate to ensure that the transported concrete will not solidify.
After transporting the concrete, the interior of the mixing drum is usually washed with water to prevent the hardened concrete from occupying space and reduce the volume of the mixing box.
Shacman Cement Mixer Truck has a lower body, which makes the whole vehicle have higher stability when driving. The compact open hydraulic circuit system improves the working efficiency. The temperature control switch can ensure that the temperature of the hydraulic system is not higher than 65 ℃. Wear resistant lining plates are added to the feed hopper and swing discharge chute to improve the service life. The mixing drum shell and blade made of special materials have higher wear resistance.
Parameters
Platform | X3000 | |
Drive type | 6X4 | |
Vehicle Weight | GVW：15 tons | |
| GCW：35 tons | ||
Frame | 850×300(8+7)mm | |
Wheelbase | 3775+1400mm | |
Engine | Weichai | Emissions: Euro II to Euro V |
| Displacement: 10L – 12L | ||
| Power: 300 PS – 420 PS | ||
| Torque: 1200 Nm – 2100 Nm | ||
Cummins | Emissions: Euro II to Euro V | |
| Displacement: 10L – 12L | ||
| Power: 340 PS – 420 PS | ||
| Torque: 1200 Nm – 2100 Nm | ||
Transmission | FAST 10 or 12 speed manual | |
Clutch | φ430 | |
Steering gear | ZF8098 | |
Axle | Front axle: MAN 9.5 ton | |
| Rear axle: MAN 16 ton single or double reduction | ||
| Gear ratio: 4.769 – 5.92 | ||
Suspension | Multi leaf spring front and rear setup | |
Tires | 315 / 80R22.5 | |
Fuel tank | 400 - 700 liter aluminum or steel tank | |
Cab | X3000 Standard | |
Configuration | Hydraulic driver seat, four point hydraulic suspended cab, electronically controlled automatic constant temperature air conditioner, electric window, manual cab turnover, telescopic shaft control, ordinary air filter, metal bumper, hinged upper pedal, 165ah maintenance free battery, spare tire rack, remote accelerator controller (electronically controlled engine) shipped with the vehicle | |
